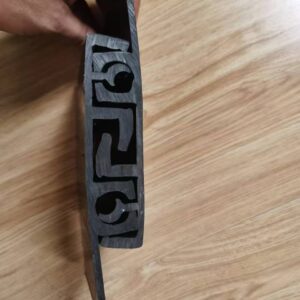

## What Is Geomembrane F Lock?
Geomembrane F Lock is a specialized HDPE connection profile used for joining two geomembrane liners together while providing enhanced waterproof and anti-seepage performance.It is particularly suitable for projects where geomembrane welding is difficult, such as vertical seepage prevention projects in landfills.
Unlike traditional welding-only connections, the F Lock system combines:
* HDPE F-shaped locking profiles
* Geomembrane welding
* Water swelling strip (hydrophilic waterstop)
to create a stronger and more reliable sealing structure.
This system is widely used in projects requiring high waterproof performance, deformation resistance, and long-term anti-leakage protection.
—
# How the Geomembrane F Lock System Works
The F Lock system is installed between two geomembrane sheets. During installation:
1. The HDPE F Lock profiles are fixed together
2. Geomembranes are welded onto both sides
3. A hydrophilic swelling strip is installed inside the connection area
4. When exposed to water, the swelling strip expands automatically
5. The expansion creates secondary sealing protection
This dual sealing structure significantly improves waterproof reliability compared with traditional geomembrane welding methods.
—
# Main Advantages of HDPE Geomembrane F Lock
## Superior Waterproof Performance
The combination of HDPE F Lock and water swelling strip creates double anti-seepage protection.
Even if slight movement or deformation occurs, the swelling strip can still maintain sealing performance.
## Flexible Connection Structure
Compared with rigid concrete anchoring systems, the F Lock structure allows certain movement and deformation while maintaining waterproof integrity.
## Secondary Sealing Protection
The hydrophilic waterstop expands after absorbing water, automatically filling small gaps and improving long-term leakage resistance.
## Excellent Chemical Resistance
HDPE material provides strong resistance against:
* Acid
* Alkali
* Wastewater
* Chemical liquids
* Underground moisture
## Long Service Life
The system is suitable for long-term underground and waterproof engineering applications.
—
# Applications of Geomembrane F Lock System
## Landfill Projects
Geomembrane F Lock systems are commonly used in:
* Landfill bottom liner systems
* Leachate ponds
* Landfill expansion joints
* HDPE liner connection areas
## Biogas Digesters and Anaerobic Lagoons
The flexible sealing structure is ideal for:
* Biogas ponds
* Anaerobic treatment lagoons
* Methane containment systems
## Wastewater Treatment Plants
Widely applied in:
* Sewage treatment tanks
* Industrial wastewater ponds
* Underground waterproof joints
## Tunnel and Underground Waterproofing
Suitable for:
* Tunnel geomembrane joints
* Underground waterproof systems
* Expansion joint waterproofing
## Aquaculture and Water Storage Projects
Used in:
* Fish ponds
* Shrimp ponds
* Water reservoirs
* Agricultural irrigation ponds
—
# Geomembrane F Lock Specifications
| Item | Specification |
| ———————- | ———————– |
| Material | HDPE |
| Thickness | Customized |
| Width | Customized |
| Length | Customized |
| Color | Black |
| Connection Method | Interlocking + Welding |
| Accessory | Hydrophilic Swell Strip |
| Temperature Resistance | Excellent |
| Chemical Resistance | Excellent |
Custom sizes are available according to project requirements.
—
# Hydrophilic Swell Strip for F Lock System
The hydrophilic swelling strip is one of the key components of the geomembrane F Lock system.
## Function of Water Swelling Strip
When exposed to water, the strip expands several times its original volume, helping to:
* Seal gaps
* Prevent leakage
* Compensate for structural movement
* Improve long-term waterproof performance
## Common Materials
* Bentonite waterstop strip
* Rubber hydrophilic strip
* Polymer swelling strip
—
# Why Choose Geomembrane F Lock?
Compared with traditional geomembrane welding connections, the HDPE F Lock system offers:
* Better waterproof performance
* Higher sealing reliability
* Secondary leakage protection
* Improved deformation resistance
* Longer service life
It is an ideal solution for modern waterproofing and anti-seepage engineering projects.
—
# Conclusion
Geomembrane F Lock is an advanced HDPE geomembrane connection system designed for high-performance waterproof and anti-seepage applications. By combining mechanical locking technology with hydrophilic swelling strips, the system provides superior sealing reliability and long-term durability.
Today, HDPE F Lock systems are widely used in landfill engineering, wastewater treatment, biogas projects, underground waterproofing, and aquaculture containment systems worldwide.
